Timer Switch(CSA-US)

1.Select working time（20min /40min /60min）by key.When you choose the working time,the LED will be on,and output 24vac.When the time is out,the LED will be off,and Close the output.Wait for the next working time you choose. .....

Timer Switch

Specs Timer Switch Look| Download

Description

This control activates the system on three possible modes of operation.

The button activates the system to run in intermittent mode for 20/40/60 minutes, it then returns to the predetermined setting. The light indicator of this wall control shows clearly, in which operating mode the unit is.

Control

Push once for 20-minute, twice for 40-minute, or three times for 60-minute activation. Indicator lights up and the controlled unit goes to high speed.

Push once more to stop activation. Unit returns to its previous setting.

Technical data

Power supply: 24V AC ±10% or 24V DC ±10% Communication protocol: Normally opened contact User interface: Push button

Type of indication:

  • LED 1 = 20 min timer is active;
  • LED 2 = 40 min timer is active;
  • LED 3 = 60 min timer is active.

Output voltage: 24V AC ±10% or 24V DC ±10%

Current Out: 100 mA, max

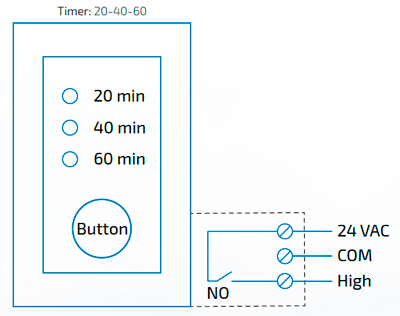

Electrical Diagram

Timer Switch
