A3 series temperature controller

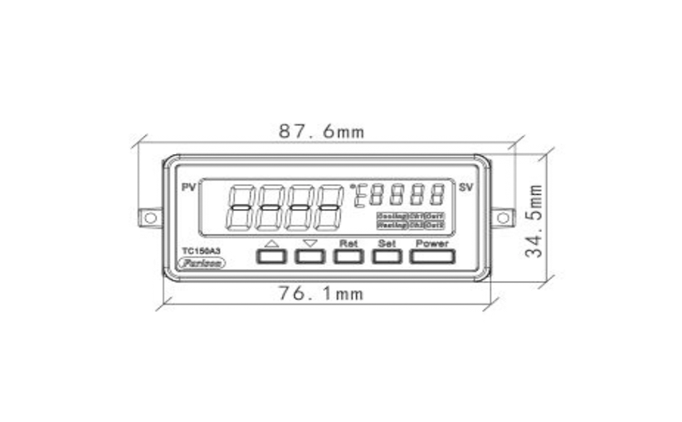

Front dimensions

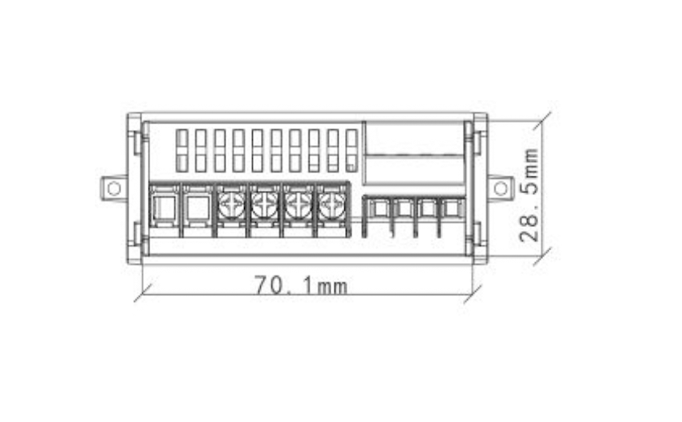

Rear dimensions

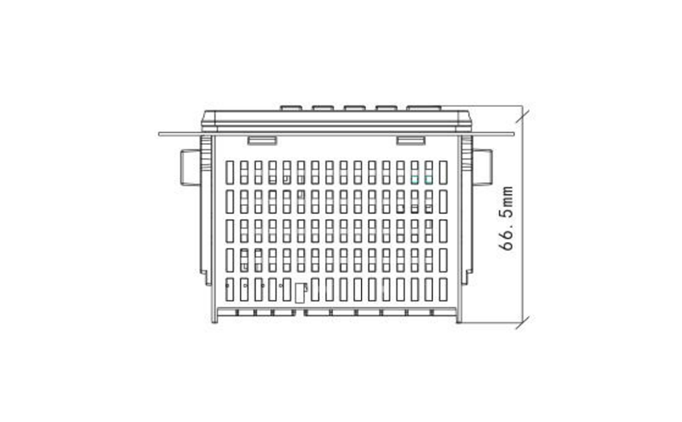

Depth dimension

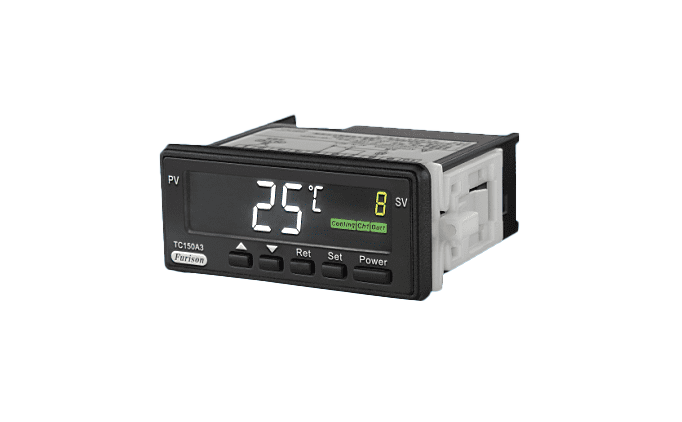

A3 series temperature controller -RPT
A3 Series Temperature Controller - RPT: Equipped with refrigerant pressure detection, featuring a simple and exquisite design, it supports more installation environments. With an external dimension of 32x74x78mm, it is suitable for use as a micro temperature controller in medium and low-temperature refrigeration systems. It has two output channels: one for the compressor and one for defrosting (either electric heating or hot gas). Additionally, it has two NTC probe inputs: one for the storage temperature and one for the evaporator temperature.
The USB port allows users to insert a programming key (HOT KEY) for uploading or downloading the parameter table.
Product Features:
RPG
LED
Delicate
UPS
°C/℉
Size
Automation
manual
Reset
LK/UNLK
Hot key
485
Housing: self extinguishing PC

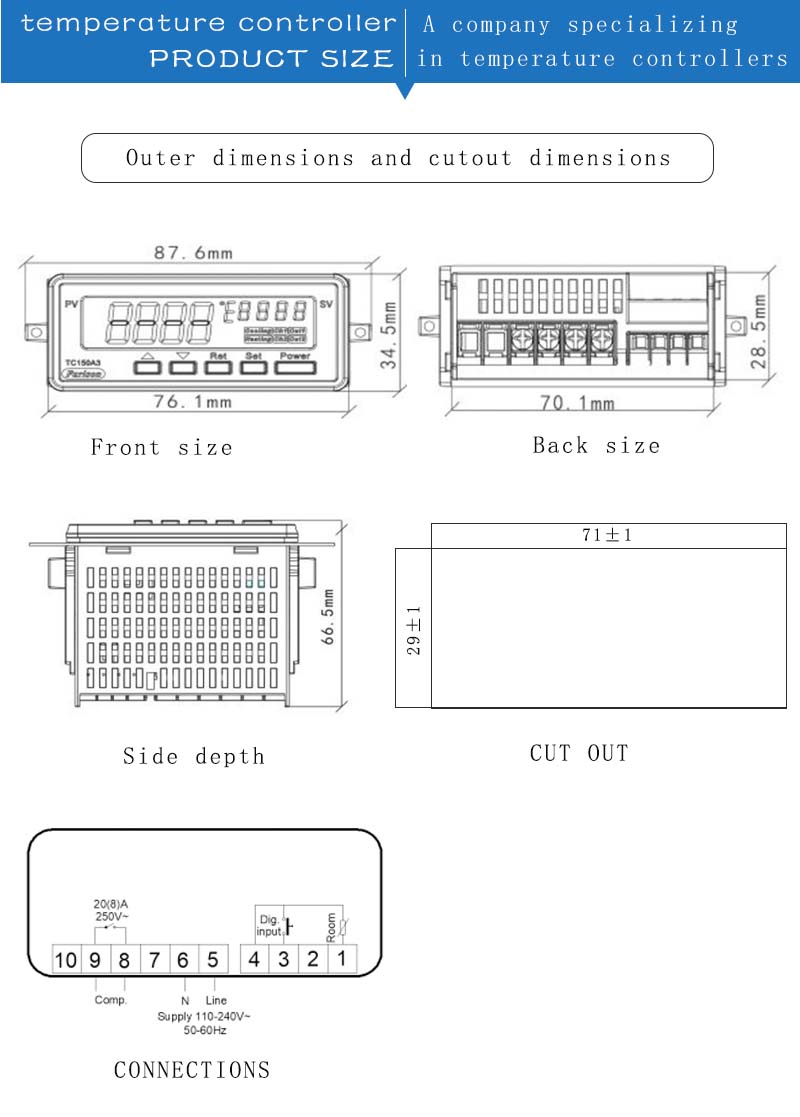

Case: facia 32x74 mm; depth 60mm
Mounting: panel mounting in a 71x29 mm panel cut-out
Protection: IP20
Frontal protection: IP65
Connections: Screw terminal block ≤ 2,5 mm2 heat-resistant wiring
Power supply: 110-240Vac ± 10%, 50/60Hz
Power absorption: 3.5VA max
Display: PV: 4 digits, white LCD,15,0 mm high; SV: 4 digits, yellow LCD, 7,5 mm high
Inputs: 1 NTC probe
Digital input: free voltage contact
Relay outputs: compressor: relay SPST 20(8)A, 250Vac
Other output : buzzer (optional)
Hot key: USB
Data storing: on the non-volatile memory (EEPROM)
Kind of action: 1B
Pollution grade: 2
Software class: A
Rated impulsive voltage: 2500V
Over voltage Category: II
Operating temperature: 0~60 °C
Storage temperature: -25~60°C
Relative humidity: 20~85% (no condensing)
Measuring and regulation range: NTC probe: -40~100°C (-40~212°F)
Resolution: 1°C or 1°F (selectable)
Accuracy (ambient temp. 25°C): ±0,1 °C ±1 digit
- Simple and exquisite design, front: 32x74 mm; Depth: 60mm, space saving installation design

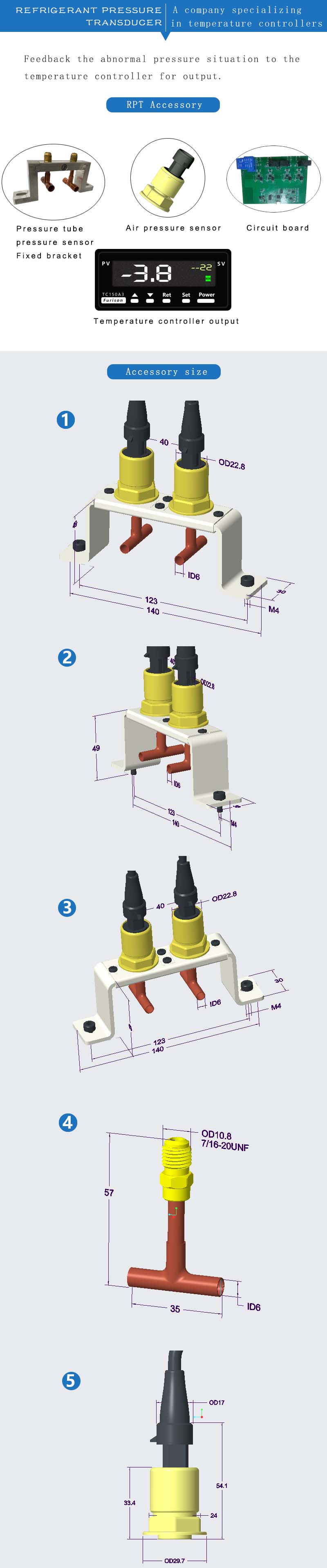

- Refrigerants pressure transducer
- Large character LED display, simple and practical
- 110-240V Global Universal Working Power Supply
- Support switching between Fahrenheit/Celsius temperature units
- Multiple standard sizes
- Enhanced PID+Control Algorithm

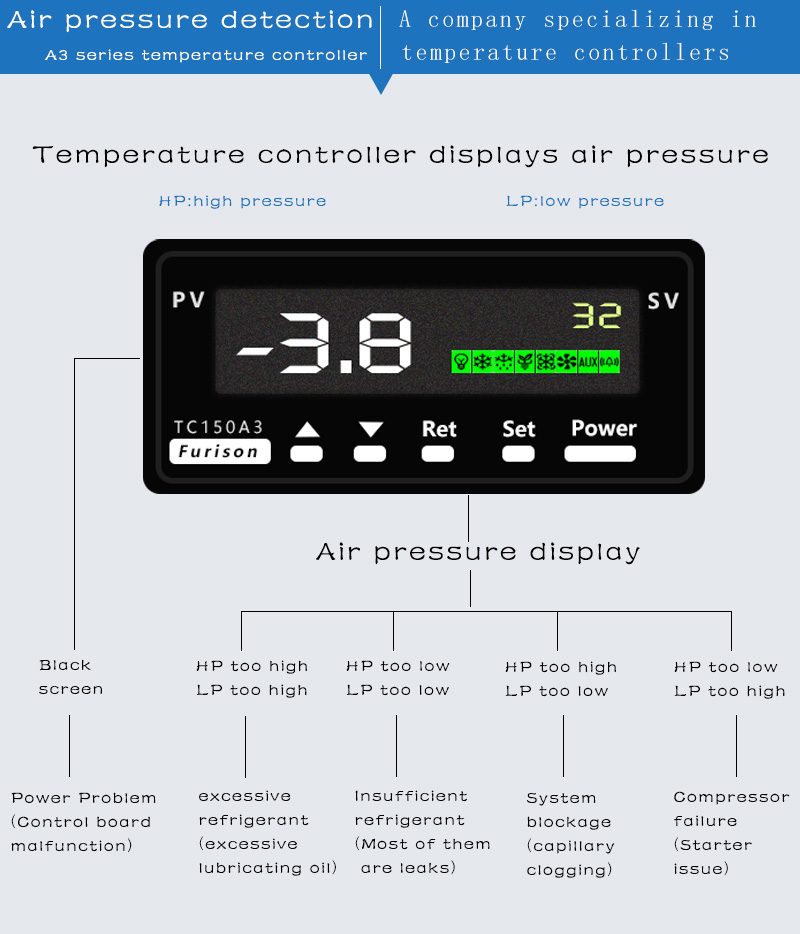

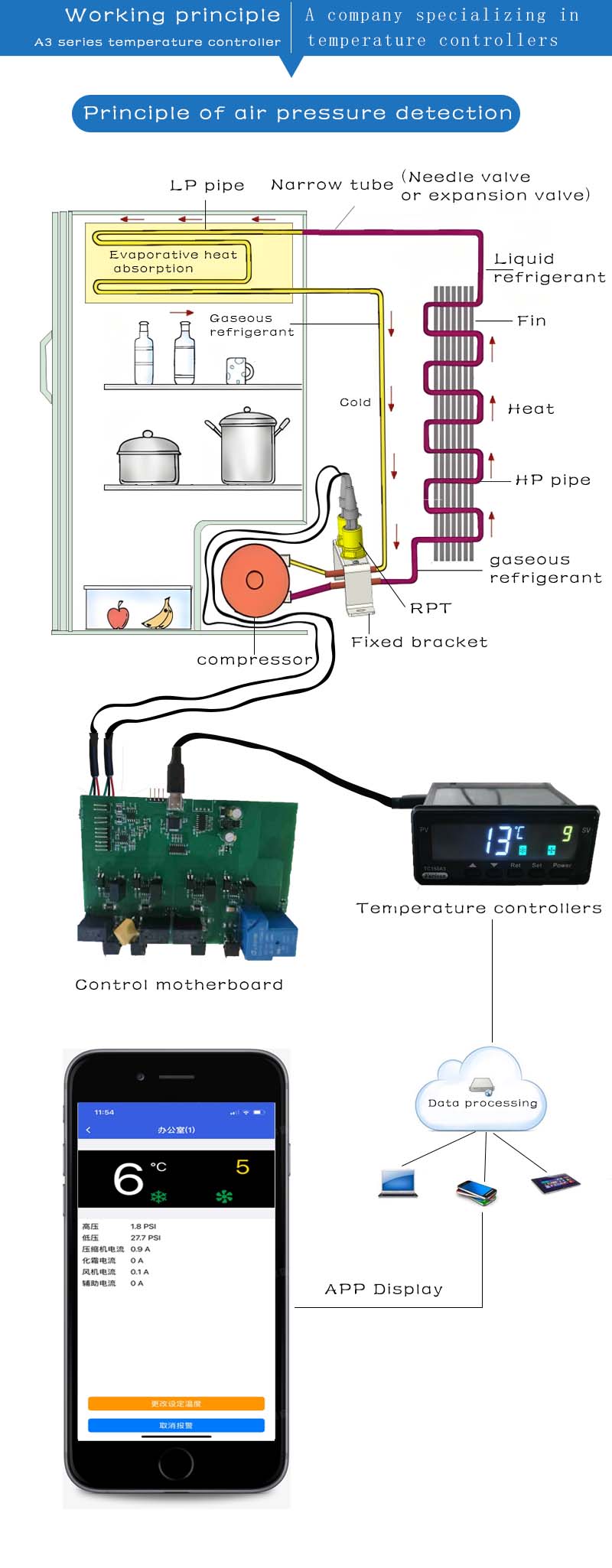

- Automatic feedback function, using air pressure detection and intelligent AI algorithm to obtain equipment problems and output feedback
- Complete manual materials, simple and easy to use
- Support one click factory reset
- Support button lock/unlock
- Support programming keys, one click upload and download data
- Support 485 port, remote control, data processing, APP management system
