FCS003K-D15 Product Data Book

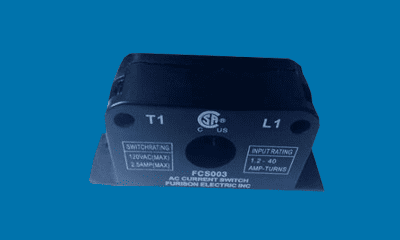

The series FCS003 AC current switch for Furison is ideal choice for monitoring all kinds of AC current. Delay circuit was applied in the designed of the switches to delay 5 minutes, 10minutes or 15 minutes. It is safe and reliable, and the structure of solid-core makes it easy for installation. The model can accept AC current from 0.5 to 50A to output a switch signal with the state of normal open to control all kinds of automation devices, such as flash lamp, buzzer, relays, single-chip SMC and other electronic load equipments. Notice that the rated load of theswitch is 2.5A @120V AC.
Specs FCS003K-D15 Look| Download
Power-supply None, self-powered.
Amperage Range 0.5 to 50A continuous
Conduct current 0.5±0.2A
Dimensions ( 47×100×28.5 )mm
Switch state: Normal open
Output Rating 2.5A @ 120VAC
AC load frequency 10-200Hz
Hysteresis ≤ 1%
Accuracy 10%
Repeatability 100%
Power consumption ≤ 1W
Response time: <200ms
Leakage current ≤ 1mA
Temperature limit 32 to 122℉ (0 to 50℃)
Humidity limits 10 to 95% RH (none-condensing).
Enclosure Rating UL 94V-0 flammability rated ABS, insulation class 600 V.
Maximum overload 200% (< 200% of the rated feedthrough current).
FCS003K-D5 Product Data Book
The series FCS003 AC current switch for Furison is ideal choice for monitoring all kinds of AC current. Delay circuit was applied in the designed of the switches to delay 5 minutes, 10minutes or 15 minutes. It is safe and reliable, and the structure of solid-core makes it easy for installation. The model can accept AC current from 0.5 to 50A to output a switch signal with the state of normal open to control all kinds of automation devices, such as flash lamp, buzzer, relays, single-chip SMC and other electronic load equipments. Notice that the rated load of theswitch is 2.5A @120V AC.
Specs FCS003K-D5 Look| Download
Power-supply None, self-powered.
Amperage Range 0.5 to 50A continuous
Conduct current 0.5±0.2A
Dimensions ( 47×100×28.5 )mm
Switch state: Normal open
Output Rating 2.5A @ 120VAC
AC load frequency 10-200Hz
Hysteresis ≤ 1%
Accuracy 10%
Repeatability 100%
Power consumption ≤ 1W
Response time: <200ms
Leakage current ≤ 1mA
Temperature limit 32 to 122℉ (0 to 50℃)
Humidity limits 10 to 95% RH (none-condensing).
Enclosure Rating UL 94V-0 flammability rated ABS, insulation class 600 V.
Maximum overload 200% (< 200% of the rated feedthrough current).
