FCS0013K-SD-NO-AL Product Data Book

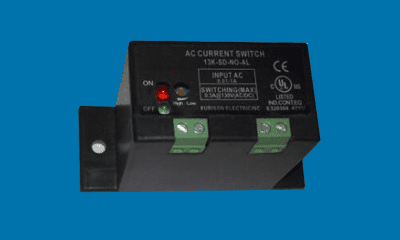

The series 13K AC current switch for Furison is ideal choice for monitoring all kinds of AC current. It is safe and reliable, and the structure of no-core makes it easy for installation. Due to its small size, it can accept AC current from 0.01 to 1A to output a switch signal with the state of normal open to control all kinds of automation devices, such as flash lamp, buzzer, relays, single-chip SMC and other electronic load equipments. The switch has adjustable set pints and LED indication to show there is power to the unit and when the switch activates. Set points can be adjusted using the potentiometer next to the LED’S. Notice that the rated load of the switch is 0.3A@130VAC/DC

Specs Series 13K Look| Download

Power Requirements None, self-powered.
Amperage Range 0.01 to 1Acontinuous
Set Point 0.01 to 1A continuous
Conduct current 0.01A
Switch state: Normal open.
Output Rating 0.3A@ 130VDC/AC
AC load frequency 10-200Hz
Hysteresis ≤ 1%
Repeatability 100%
Power consumption ≤ 1W
Response time: <200ms
Leakage current ≤ 1mA
Temperature limit 32 to 122℉ (0 to 50℃)
Humidity limits 10 to 95% RH (none-condensing).
Enclosure Rating UL 94V-0 flammability rated ABS, insulation class 600 V.
Dimensions (63.5 × 42 × 25)mm Hole ,size: 8.5mm
Maximum overload 200% (< 200% of the rated feedthrough current).
Weight 0.5 oz (14.5g)
